Floating Shelf Metal Bracket
Volume Discounts
Save 5% when ordering 24 or more pieces of the same product
Save 10% when ordering 50 or more pieces of the same product
Save 20% when ordering 100 or more pieces of the same product
*Discounted pricing reflected in cart
*All wood components are unfinished. Learn more about wood types or request a quote.
PRODUCT INSTRUCTIONS
(Click to view PDF)

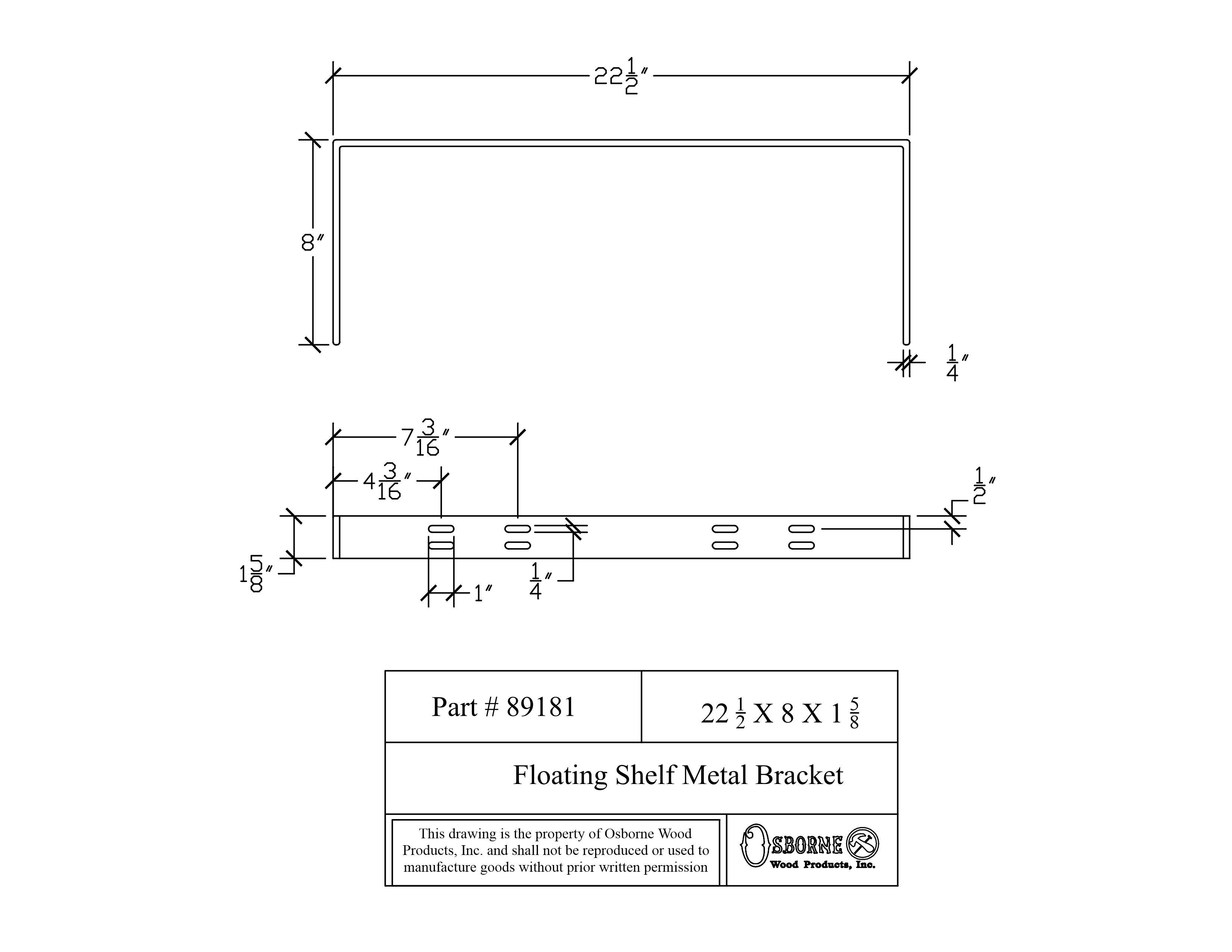

The 22 1/2" Stud Mounted Floating Shelf Hardware is designed to support a shelf with maximum load bearing capacity and minimum deflection. The bracket is 22 1/2" wide, 7 7/8" long, and 1 5/8" high. The back of the bracket has a versatile hole pattern that will allow mounting at intervals between 12 and 20 inches. The bracket comes with four 10mm hex head wood screws that are each 2 3/4" long.
This hardware is intended to provide the necessary support between the wall and a floating shelf box which should fit snuggly around the 7 7/8" arms on either side of the hardware. Floating shelf box is not included. If you would like a full kit including the bracket and shelf, check out our Large Floating Shelf (Part #8918).
See this hardware in action in our floating shelf demonstration video below!
