26" Equalizer Table Slide (51" opening)
Volume Discounts
Save 5% when ordering 24 or more pieces of the same product
Save 10% when ordering 50 or more pieces of the same product
Save 20% when ordering 100 or more pieces of the same product
*Discounted pricing reflected in cart
*All wood components are unfinished. Learn more about wood types or request a quote.
All of our wooden table slides are sold as a pair (one left, one right).
This 26" Equalizer Slide is constructed with a camber to prevent table sagging. It has a rack and pinion design creating a smooth and balanced extension. Each slide has eight pre-drilled holes to attach to the table top. Mounting screws for the table top are not included.
- Length of the slide when closed: 26"
- Length of the slide when fully extended: 77"
- Width of slide when closed: 5 5/8" (constructed with five sections)
- Accepts four (4) 12" leaves
It is important to select the correct table slide prior to purchase:
- Equalizer table slides: Designed for use on a table supported by a single pedestal as it develops a camber to compensate for sagging at the table ends. Tabletops that are supported on a single pedestal require an equalizer slide that incorporates a rack and pinion system to ensure that the tops easily open and close while staying in balance.
- Standard table slides: A standard slide is designed for a four-legged table, where the distance between the legs on each end of the table increases as the table is opened. A standard slide creates a camber to compensate for sagging in the center of the table.
Find out more about choosing the right table slide and see helpful installation tips by checking out our table slides information page.
Related Blog Posts

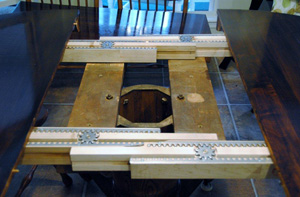

- Refinished Oak Table with Equalizer Slides March 8, 2019
CAD Drawings
Related Products
-
2023-09-14 Material: Soft Maple (paintgrade)
Easy to install after watching video.
-
2023-01-12 Material: Soft Maple (paintgrade)
Easy install. Really appreciated the video instructions linked within the written instructions. Installation was smooth on first try!
-
2022-10-13 Material: Soft Maple (paintgrade)
Great quality and function
-
2022-05-27 Material: Soft Maple (paintgrade)
Also, shipping was exceptionally quick. I was surprised how quickly product was received
-
2021-06-30 Material: Soft Maple (paintgrade)
Would highly recommend
-
2021-03-11 Material: Soft Maple (paintgrade)
Wood refinishing shop
-
2021-03-11 Material: Soft Maple (paintgrade)
The slide appears very solid and I expect it to work once installed.
-
2020-06-01 Material: Soft Maple (paintgrade)
The slide only opens to 49 3/4".
-
2020-04-10 Material: Soft Maple (paintgrade)
works great
-
2020-02-20 Material: Soft Maple (paintgrade)
To all my clients that might be in need of some of your products.
